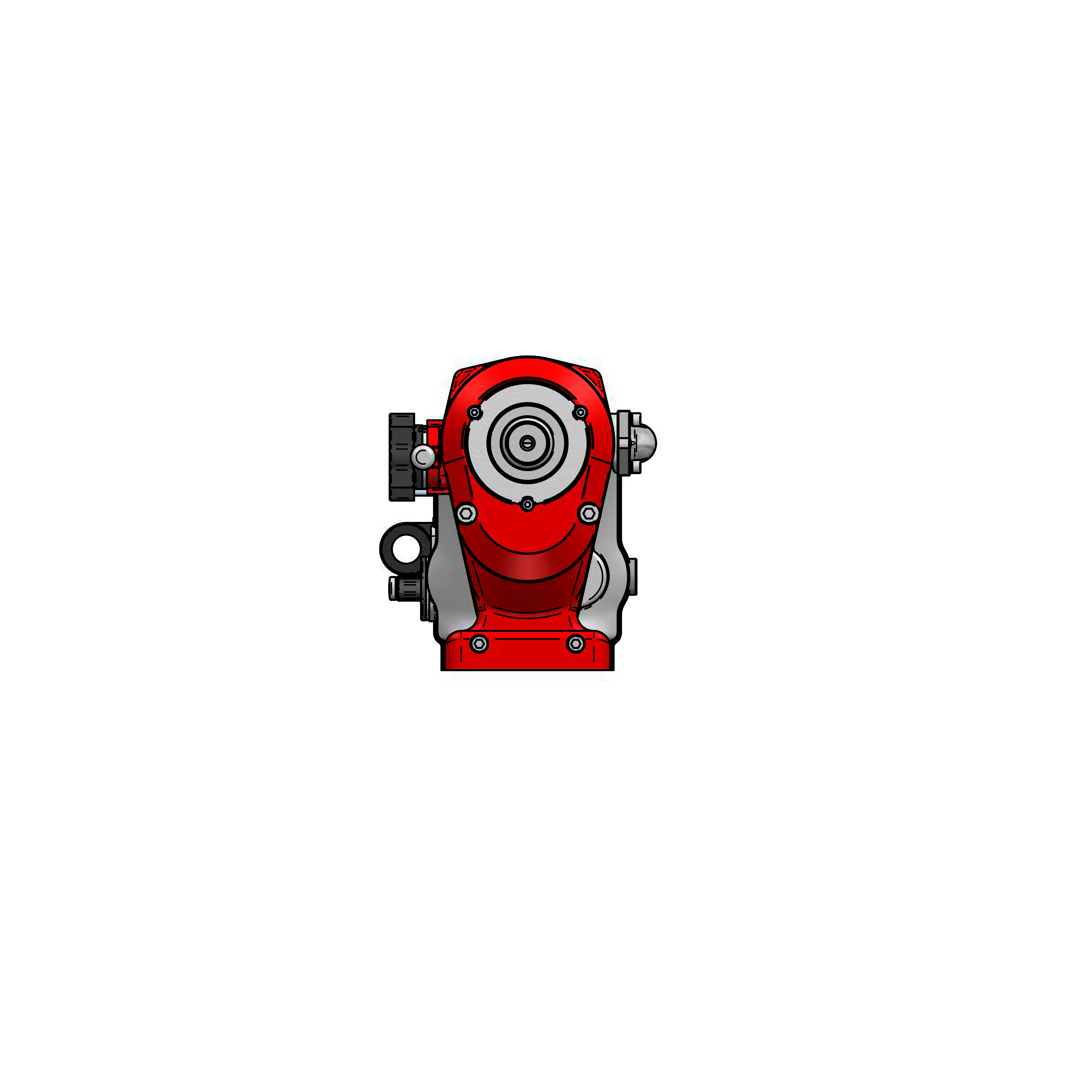

VORTEX 625-EL

Core drill motor - wet - 6 gears

On stand (rig)
Wet
TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Ultra heavy-duty, impressively powerful, for very large drillings
25-600 / 1"-24" [mm]/[in]
3350/2820 W

Contact us
SKU: 9900 Categories: ,

Main features

Drilling mode Wet
Technology TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 25-600 / 1"-24" [mm]/[in]
Input power (max / rated) 3350/2820 W
Input current (max / rated) 31/25 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks

Applications

  • Drilling for chimneys installation
  • Drillings of marble and stone slab
  • Sampling of cores
  • Manhole / round openings
  • Consolidation and securing of buildings - deep drillings
  • Stitch drilling
  • Opening of doors / windows / skylights
  • Drillings of marble and stones in quarries

Users

  • Construction company / general contractor
  • Professional drilling and cutting company
  • Demolition expert
  • Company specialized in quarrying

Included items

Core drill motor: VORTEX 625-EL-7

Technical features

VORTEX 625-EL-7 - Technical Image
Operational mode On stand (rig)
Drilling mode Wet
Technology TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 25-600 / 1"-24" [mm]/[in]
Input power (max / rated) 3350/2820 W
Input current (max / rated) 31/25 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 115-120 V - 50-60 Hz
Gears 6
Rated no-load rpm 210/340/480/730/1200/1670 RPM
Rated load rpm 135/220/315/480/780/1100 RPM
Core bit connection 1"1/4 UNC
PRCD / GFI Included

Noise emission value - A-weighted sound pressure level (LpA) 91 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 104 [dB (A)]




Weight 17.6/38.8 [kg]/[lb]
Dimensions - L x W x H 635x168x192 - 24"x6"1/4x6"3/4 [mm]/[in]
Supplied in Carton box
