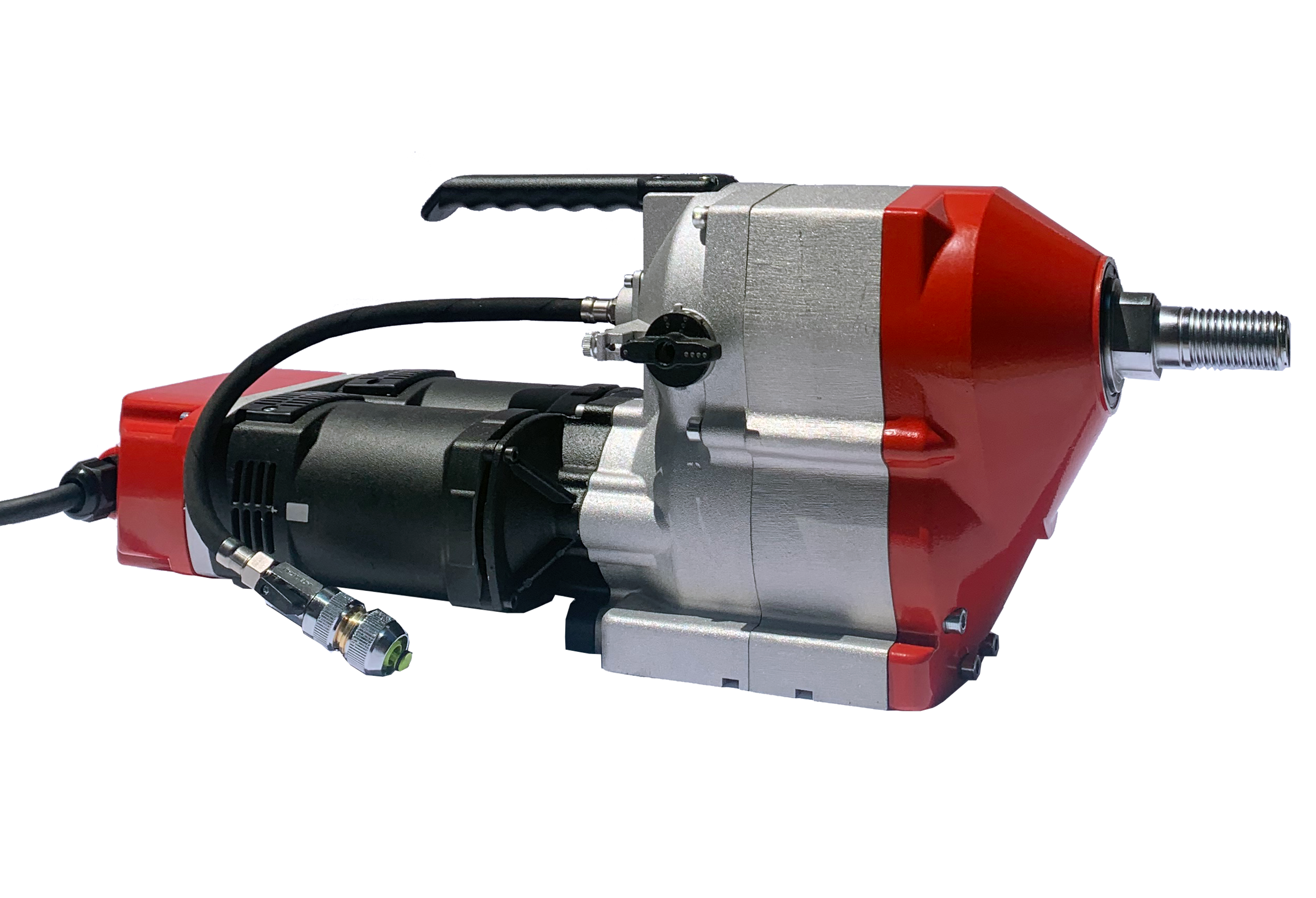

BM 1005-EL
Core drill motor - wet - 4 gears
On stand (rig)
Wet
BM technology - 2x electric air-cooled 1P motor + CARDI adv. electronics
Ultra heavy-duty, impressively powerful, for very large drillings
152-1000 / 6"-40" [mm]/[in]
6700/5640 W
Main features
Drilling mode Wet
Technology BM technology - 2x electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 152-1000 / 6"-40" [mm]/[in]
Input power (max / rated) 6700/5640 W
Input current (max / rated) 62/50 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Applications
- Manhole / round openings
- Consolidation and securing of buildings - deep drillings
- Stitch drilling
- Opening of doors / windows / skylights
- Drillings of marble and stones in quarries
Users
- Professional drilling and cutting company
- Demolition expert
- Company specialized in quarrying
Included items
Core drill motor: BM 1005-EL-7
Technical features
Operational mode On stand (rig)
Drilling mode Wet
Technology BM technology - 2x electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 152-1000 / 6"-40" [mm]/[in]
Input power (max / rated) 6700/5640 W
Input current (max / rated) 62/50 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 115-120 V - 50-60 Hz
Gears 4
Rated no-load rpm 80/120/200/290 RPM
Rated load rpm 50/80/130/190 RPM
Core bit connection 1"1/4 UNC
PRCD / GFI GFI-box
Noise emission value - A-weighted sound pressure level (LpA) 97 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 110 [dB (A)]
Weight 39/86 [kg]/[lb]
Dimensions - L x W x H 730x220x270 - 28"1/4x8"3/4x10"1/4 [mm]/[in]
Supplied in Carton box
