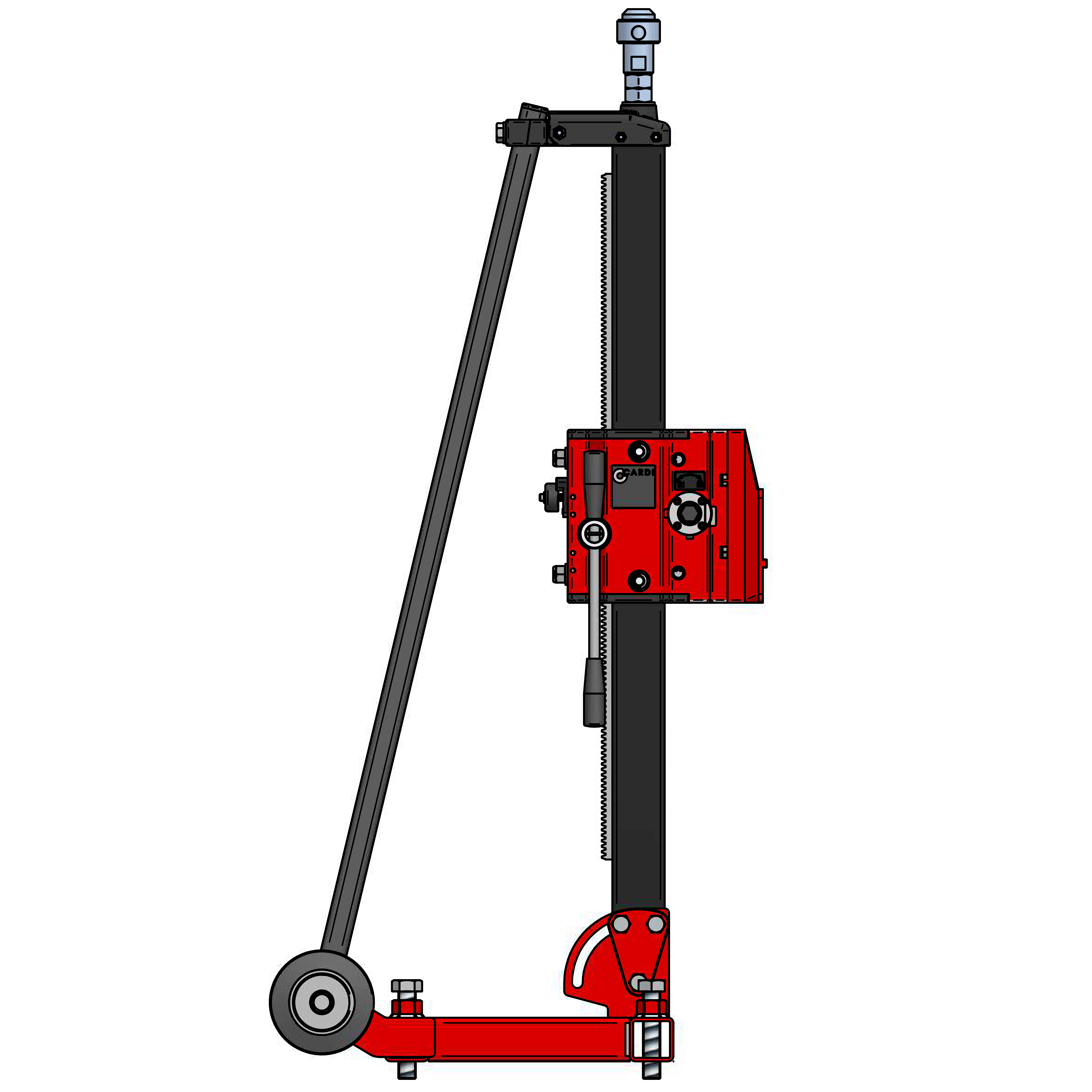

CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
Construction worker drill a wall with CARDI 501 core drill on stand.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, front view.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
Construction worker drill a wall with CARDI 501 core drill on stand.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
CARDI C 600 steel drill stand for core drill motor, heavy-duty for large drillings, front view.

C 600

Stand (rig) - heavy duty - with Cam-lock quick connection

Ultra heavy-duty, for very large drillings
600 / 24" [mm]/[in]

Contact us
SKU: 16500 Categories: ,

Main features

Base professional high resistance steel base
Column steel 60x60 mm/steel 2"1/2x2"1/2 ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 3 spokes feeding handle
Max carriage run 675 / 26"1/2 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 75°
Fixing system with anchor
Core drill mounting Cam-lock quick connection
Max drilling diameter 600 / 24" [mm]/[in]
Available as
CARDI 501 Core drill on stand (rig) - wet - 4 gears

CARDI 501

Core drill on stand (rig) - wet - 4 gears

Discover now

Applications

Drillings for chimneys installation
Drillings of marble and stone slabs
Sampling of cores
Manhole / round openings
Consolidation and securing of buildings – deep drillings
Drillings of marble and stones in quarries
Stitch drilling
Opening of doors, windows, skylights

Users

Construction company / general contractor
Professional drilling and cutting company
Demolition expert
Company specialized in quarrying

Included items

Stand (rig): C 600
Accessory: 501163 – Spanner 19 mm
Accessory: 502110 – Spanner 30 mm
Accessory: 505284 – Allen key 6 mm

Technical features

C 600 - Technical Image
Technology COLUMBUS technology
Base professional high resistance steel base
Column steel 60x60 mm/steel 2"1/2x2"1/2 ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 3 spokes feeding handle
Max carriage run 675 / 26"1/2 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 75°
Fixing system with anchor
Core drill mounting Cam-lock quick connection
Max drilling diameter 600 / 24" [mm]/[in]
Weight 31.56/69.6 [kg]/[lb]
Dimensions - L x W x H 565x366x1205 - 21"1/4x14"x47"1/4 [mm]/[in]
Supplied in Carton box
