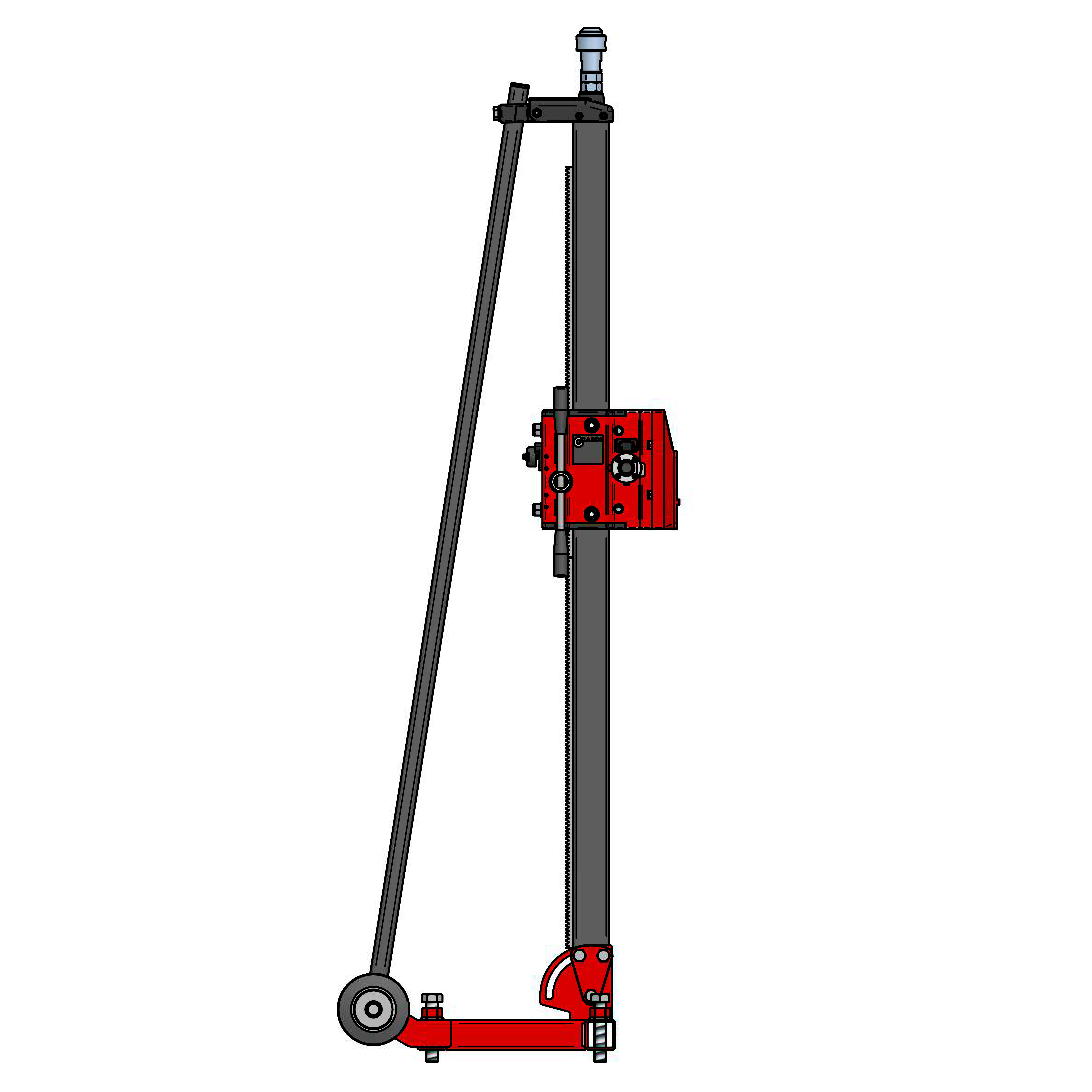

C 600-1500
Stand (rig) - heavy duty - extended carriage run
Ultra heavy-duty, for very large drillings
600 / 24" [mm]/[in]
Main features
Base professional high resistance steel base
Column steel 60x60 mm/steel 2"1/2x2"1/2 ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 3 spokes feeding handle
Max carriage run 1175 / 46"1/4 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 75°
Fixing system with anchor
Core drill mounting cam-lock quick connect
Max drilling diameter 600 / 24" [mm]/[in]
Applications
Drillings for chimneys installation
Drillings of marble and stone slabs
Sampling of cores
Manhole / round openings
Consolidation and securing of buildings – deep drillings
Drillings of marble and stones in quarries
Stitch drilling
Opening of doors, windows, skylights
Users
Construction company / general contractor
Professional drilling and cutting company
Demolition expert
Company specialized in quarrying
Included items
Stand (rig): C 600-1500
Accessory: 501163 – Spanner 19 mm
Accessory: 502110 – Spanner 30 mm
Accessory: 505284 – Allen key 6 mm
Technical features
Technology COLUMBUS technology
Base professional high resistance steel base
Column steel 60x60 mm/steel 2"1/2x2"1/2 ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 3 spokes feeding handle
Max carriage run 1175 / 46"1/4 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 75°
Fixing system with anchor
Core drill mounting cam-lock quick connect
Max drilling diameter 600 / 24" [mm]/[in]
Weight 35.5/78.3 [kg]/[lb]
Dimensions - L x W x H 565x366x1702 - 21"1/4x14"x62" [mm]/[in]
Supplied in Carton box
