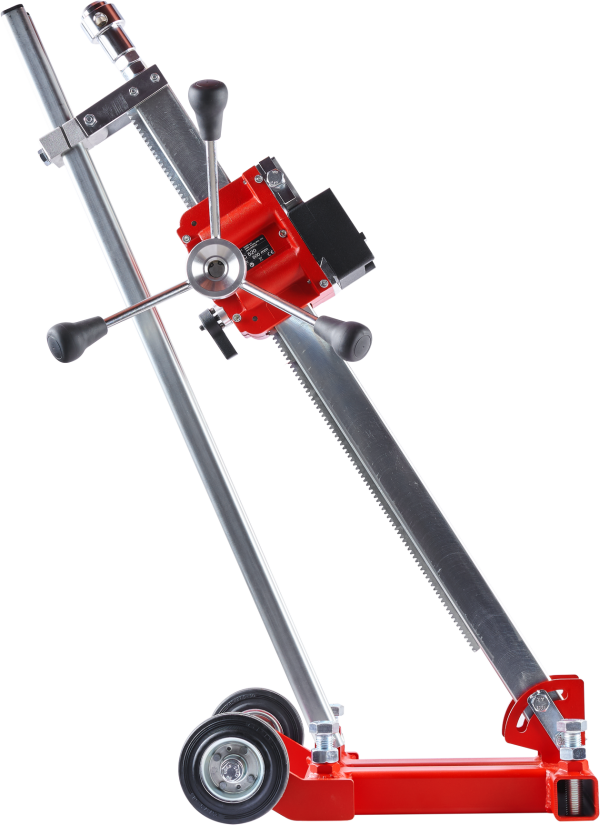

CARDI C 520 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
CARDI C 520 steel drill stand for core drill motor, heavy-duty for large drillings.
CARDI C 520 steel drill stand for core drill motor, heavy-duty for large drillings.
CARDI C 520 steel drill stand for core drill motor, heavy-duty for large drillings.
CARDI C 520 steel drill stand for core drill motor, heavy-duty for large drillings.
Construction worker drill a wall with CARDI 500 core drill on stand with core bit.
Construction worker drill a wall with CARDI 500 core drill on stand with core bit.
CARDI C 520 steel drill stand for core drill motor, heavy-duty for large drillings, side view.
CARDI C 520 steel drill stand for core drill motor, heavy-duty for large drillings.

C 520

Stand (rig) - heavy duty - with Dove-tail quick connection

Heavy-duty, for large drillings
500 / 20" [mm]/[in]

Contact us
SKU: 16400 Categories: ,

Main features

Base professional high resistance steel base
Column steel 50x50 mm/steel 2x2" ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 3 spokes feeding handle
Max carriage run 650 / 25"1/2 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting Dove-tail quick connection
Max drilling diameter 500 / 20" [mm]/[in]
Available as
CARDI 306 Core drill on stand (rig) - wet - 2 gears

CARDI 306

Core drill on stand (rig) - wet - 2 gears

Discover now

Applications

  • Drillings for HVAC installation
  • Drillings for networks
  • Drillings for anchors installation
  • Drilling for chimneys installation
  • Drilling for guardrails and fences installation
  • Drillings of marble and stone slab
  • Sampling of cores
  • Manhole / round openings
  • Consolidation and securing of buildings - deep drillings
  • Stitch drilling
  • Opening of doors / windows / skylights
  • Drillings of marble and stones in quarries

Users

  • Plumber
  • Electrician
  • Installer
  • Stonemason
  • Landscaper / gardener
  • Company specialized in material's testing
  • Construction company / general contractor
  • Professional drilling and cutting company
  • Demolition expert
  • Company specialized in quarrying

Included items

Stand (rig): C 520
Accessory: 501163 – Spanner 19 mm
Accessory: 502110 – Spanner 30 mm
Accessory: 505284 – Allen key 6 mm

Technical features

C 520 - Technical Image
Technology COLUMBUS technology
Base professional high resistance steel base
Column steel 50x50 mm/steel 2x2" ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 3 spokes feeding handle
Max carriage run 650 / 25"1/2 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting Dove-tail quick connection
Max drilling diameter 500 / 20" [mm]/[in]
Weight 23.6/52 [kg]/[lb]
Dimensions - L x W x H 550x366x1132 - 21"1/4x14"1/2x44" [mm]/[in]
Supplied in Carton box
