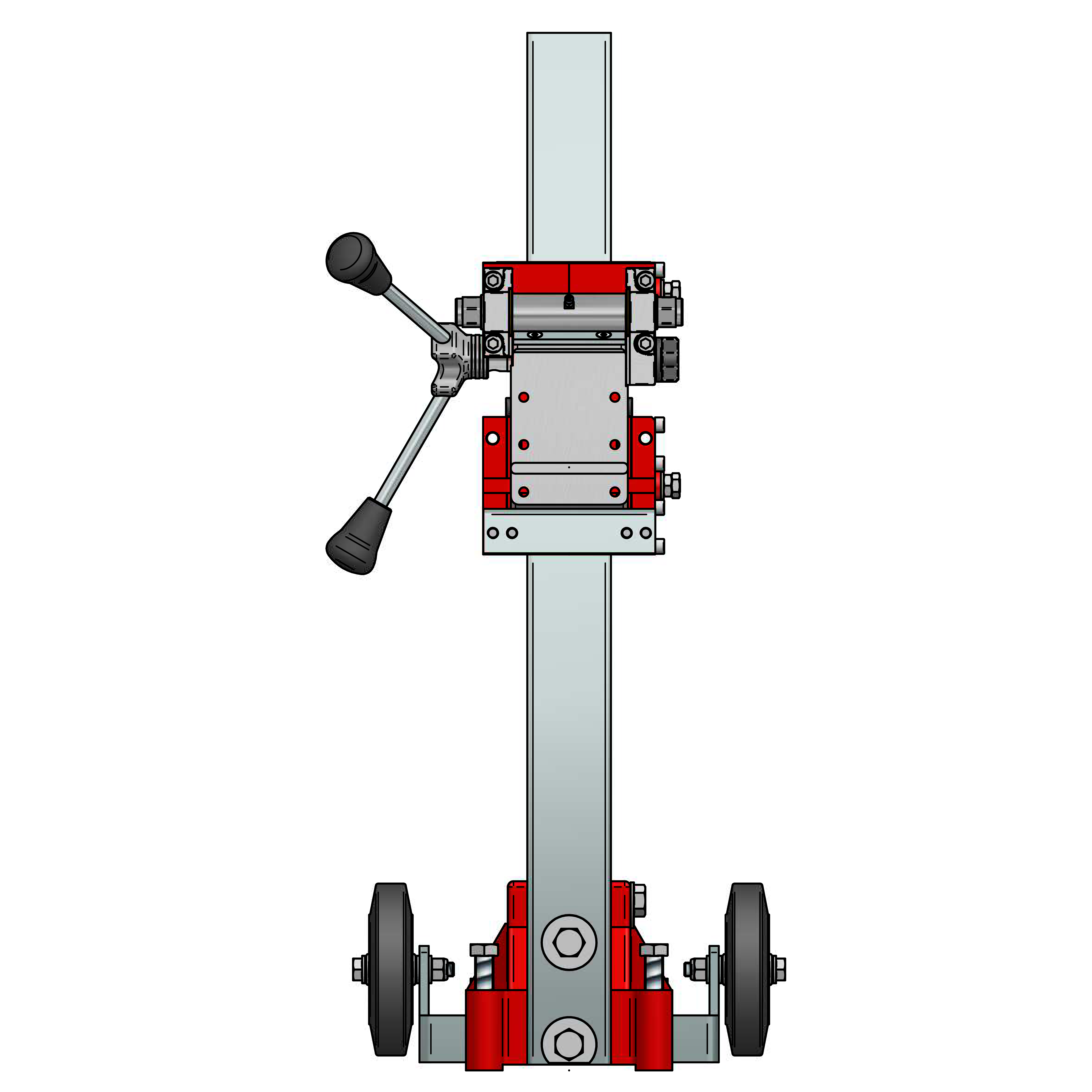

X2R
Stand (rig) - heavy duty - with Cam-lock quick connection
Ultra heavy-duty, for very large drillings
700 / 28" [mm]/[in]
Main features
Base compact and light aluminum base
Column steel 73x73 mm/steel 2"7/8 x 2"7/8 [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 2 spokes feeding handle
Max carriage run 750 / 29"1/2 [mm]/[in]
Rear bars steel - 2 bars
Fixing system with anchor
Core drill mounting Cam-lock quick connection
Max drilling diameter 700 / 28" [mm]/[in]
Users
- Company specialized in material's testing
- Construction company / general contractor
- Professional drilling and cutting company
- Demolition expert
Applications
- Drilling for chimneys installation
- Drillings of marble and stone slab
- Sampling of cores
- Manhole / round openings
- Consolidation and securing of buildings - deep drillings
- Stitch drilling
- Opening of doors / windows / skylights
- Drillings of marble and stones in quarries
Included items
Stand (rig): X2R
Accessory: 502519 – Spanner 17 mm
Accessory: 501163 – Spanner 19 mm
Accessory: 503295 – Spanner 24 mm
Accessory: 505284 – Allen key 6 mm
Technical features
Technology X2R technology
Base compact and light aluminum base
Column steel 73x73 mm/steel 2"7/8 x 2"7/8 [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 2 spokes feeding handle
Max carriage run 750 / 29"1/2 [mm]/[in]
Rear bars steel - 2 bars
Fixing system with anchor
Core drill mounting Cam-lock quick connection
Max drilling diameter 700 / 28" [mm]/[in]
Weight 35.5/78.3 [kg]/[lb]
Dimensions - L x W x H 380x475x1130 - 15"x18"3/4x44"1/2 [mm]/[in]
Supplied in Carton box
