TP 400-FC-BL
CARDI TP 400-FC-BL very powerful hand-held flush cut wet blade saw with TP technology and 40 cm diamond blade.

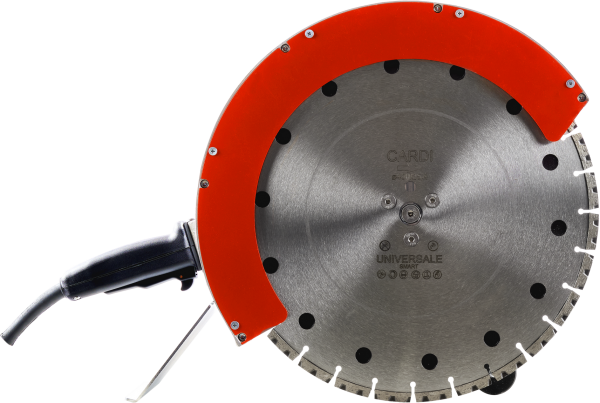

CARDI TP 400-FC-BL very powerful hand-held flush cut wet blade saw with TP technology and 40 cm diamond blade, side view.
CARDI TP 400-FC-BL very powerful hand-held flush cut wet blade saw with TP technology and 40 cm diamond blade, front view.
CARDI TP 400-FC-BL very powerful hand-held flush cut wet blade saw with TP technology and 40 cm diamond blade.
CARDI TP 400-FC-BL very powerful hand-held flush cut wet blade saw with TP technology and 40 cm diamond blade.
CARDI TP 400-FC-BL very powerful hand-held flush cut wet blade saw with TP technology and 40 cm diamond blade, side view.
CARDI TP 400-FC-BL very powerful hand-held flush cut wet blade saw with TP technology and 40 cm diamond blade, front view.

TP 400-FC-BL

Blade saw - wet - flush cut - blade included

Hand-held
Wet
TP technology - electric air-cooled 1P motor + CARDI adv. electronics
Heavy-duty, very powerful, for any cutting
400 / 16" [mm]/[in]
160 / 6"1/4 [mm]/[in]
3600/3000 W

Contact us
SKU: 15100 Categories: ,

Main features

Cutting mode Wet
Technology TP technology - electric air-cooled 1P motor + CARDI adv. electronics
Blade diameter 400 / 16" [mm]/[in]
Cutting depth 160 / 6"1/4 [mm]/[in]
Input power (max / rated) 3600/3000 W
Input current (max / rated) 17/14 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks

Applications

Opening of doors, windows, skylights
Cutting of marble and stone slabs
Cutting of pavement slabs
Cutting of curbs
Cutting of grooves and joints
Cutting of concrete pipes
Cutting of grooves for installations (e.g., cabling, plumbing)
Cutting of building bricks / blocks

Users

Stonemason
Landscaper / gardener
Construction company / general contractor
Professional drilling and cutting company
Demolition expert

Included items

Blade saw: TP 400-FC-EL-1 A3-D1
Blade: DDT 400-SX – Diamond blade – Wet / dry
Accessory: 504954 – Flush cutting device – For TP 400

Technical features

TP 400-FC-BL - Technical Image
Operational mode Hand-held
Cutting mode Wet
Technology TP technology - electric air-cooled 1P motor + CARDI adv. electronics
Blade diameter 400 / 16" [mm]/[in]
Cutting depth 160 / 6"1/4 [mm]/[in]
Input power (max / rated) 3600/3000 W
Input current (max / rated) 17/14 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Rated no-load rpm 2490 RPM
Rated load rpm 1680 RPM
Blade hole diameter 25.4 mm
PRCD / GFI Included
Noise emission value - A-weighted sound pressure level (LpA) 93 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 104 [dB (A)]
Vibrations value (ah) 6.65 [m/s²]
Weight 14.4/31.7 [kg]/[lb]
Dimensions - L x W x H 295x600x450 - 10"1/4x24"x17"3/4 [mm]/[in]
Supplied in Carton box
