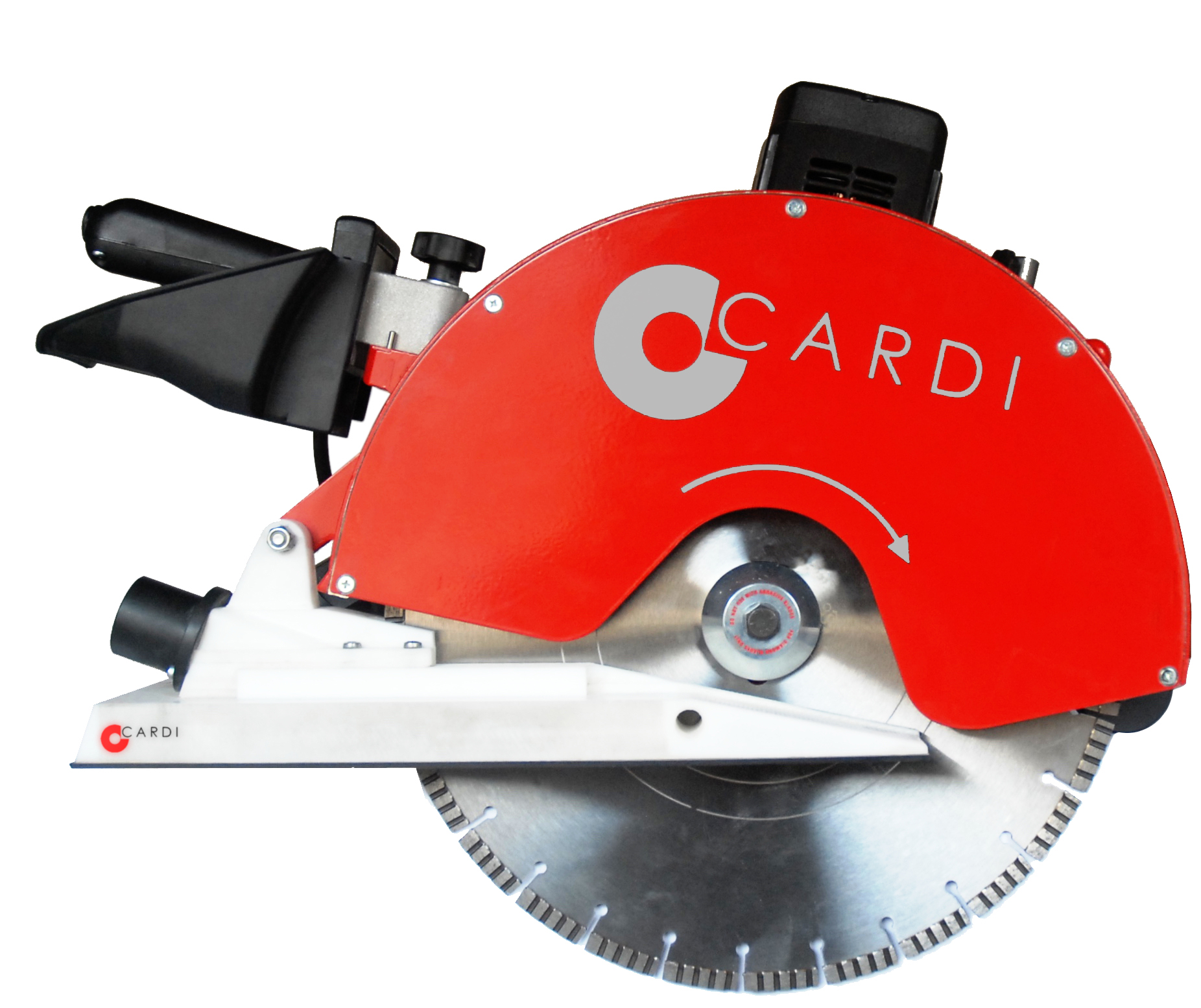

CARDI PE 401-BL hand-held or on rail blade saw with PE technology and dust extraction with 40 cm diamond blade.
Construction worker cut a concrete block using CARDI PE 401 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker with CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
CARDI PE 401 Sega circolare per taglio a umido / secco pronta a tagliare un muro, dettaglio del taglio a filo
Construction worker cutting a wall with CARDI DV PE400-1500 blade saw on rail.

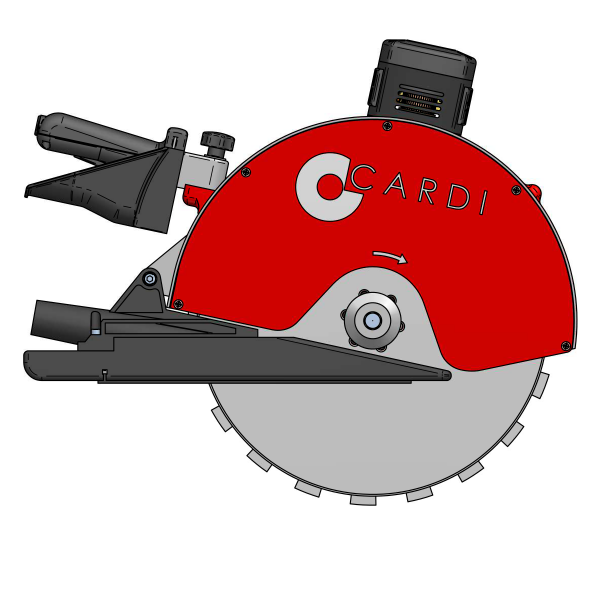

CARDI PE 401-BL hand-held or on rail blade saw with PE technology and dust extraction with 40 cm diamond blade, side view.
CARDI PE 401-BL hand-held or on rail blade saw with PE technology and dust extraction with 40 cm diamond blade, front view.
CARDI PE 401-BL hand-held or on rail blade saw with PE technology and dust extraction with 40 cm diamond blade.
CARDI PE 401-BL hand-held or on rail blade saw with PE technology and dust extraction with 40 cm diamond blade.
Construction worker cut a concrete block using CARDI PE 401 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker with CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
CARDI PE 401 Sega circolare per taglio a umido / secco pronta a tagliare un muro, dettaglio del taglio a filo
Construction worker cutting a wall with CARDI DV PE400-1500 blade saw on rail.
CARDI PE 401-BL hand-held or on rail blade saw with PE technology and dust extraction with 40 cm diamond blade, side view.
CARDI PE 401-BL hand-held or on rail blade saw with PE technology and dust extraction with 40 cm diamond blade, front view.

PE 401-BL

Blade saw - wet / dry - also flush cut in wet use - blade included

Hand-held or on rail
Wet / dry
PE technology - electric air-cooled 1P motor + CARDI adv. electronics
Heavy-duty, impressively powerful, for any cutting
400 / 16" [mm]/[in]
160 (135 with dust extraction) / 6"1/4 (5"1/4 with dust extraction) [mm]/[in]
4600/3420 W

Contact us
SKU: 14300 Categories: ,

Main features

Cutting mode Wet / dry
Technology PE technology - electric air-cooled 1P motor + CARDI adv. electronics
Blade diameter 400 / 16" [mm]/[in]
Cutting depth 160 (135 with dust extraction) / 6"1/4 (5"1/4 with dust extraction) [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Available as
DV PE400-1500 Blade saw on rail - wet - also flush cut - blade included

DV PE400-1500

Blade saw on rail - wet - also flush cut - blade included

Discover now

Applications

  • Opening of doors / windows / skylights
  • Cutting of marble and stone slabs
  • Cutting of pavement slabs
  • Cutting of curbs
  • Cutting of grooves and joints
  • Cutting of concrete pipes
  • Cutting of building bricks / blocks
  • Cutting of grooves for installations

Users

  • Stonemason
  • Landscaper / gardener
  • Construction company / general contractor
  • Professional drilling and cutting company
  • Demolition expert

Included items

Blade saw: PE 401
Blade: DDT 400-SX – Diamond blade – Wet / dry
Accessory: 506152 – Dust extraction accessory – For PE 400 blade saw

Technical features

PE 401-BL - Technical Image
Operational mode Hand-held or on rail
Cutting mode Wet / dry
Technology PE technology - electric air-cooled 1P motor + CARDI adv. electronics
Blade diameter 400 / 16" [mm]/[in]
Cutting depth 160 (135 with dust extraction) / 6"1/4 (5"1/4 with dust extraction) [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Rated no-load rpm 2870 RPM
Rated load rpm 1880 RPM
Blade hole diameter 25.4 mm
PRCD / GFI Included
Noise emission value - A-weighted sound pressure level (LpA) 93 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 104 [dB (A)]
Vibrations value (ah) 6.65 [m/s²]
Weight 16.52/36.4 [kg]/[lb]
Dimensions - L x W x H 210x650x560 - 8"1/4x25"1/4x21"1/4 [mm]/[in]
Supplied in Carton box
