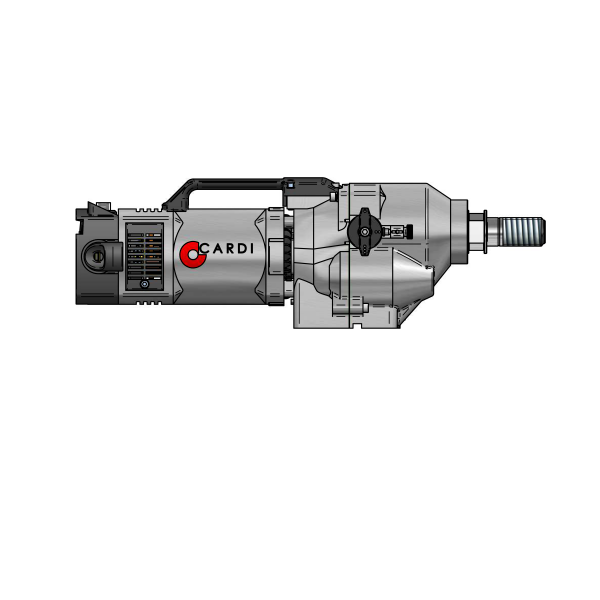

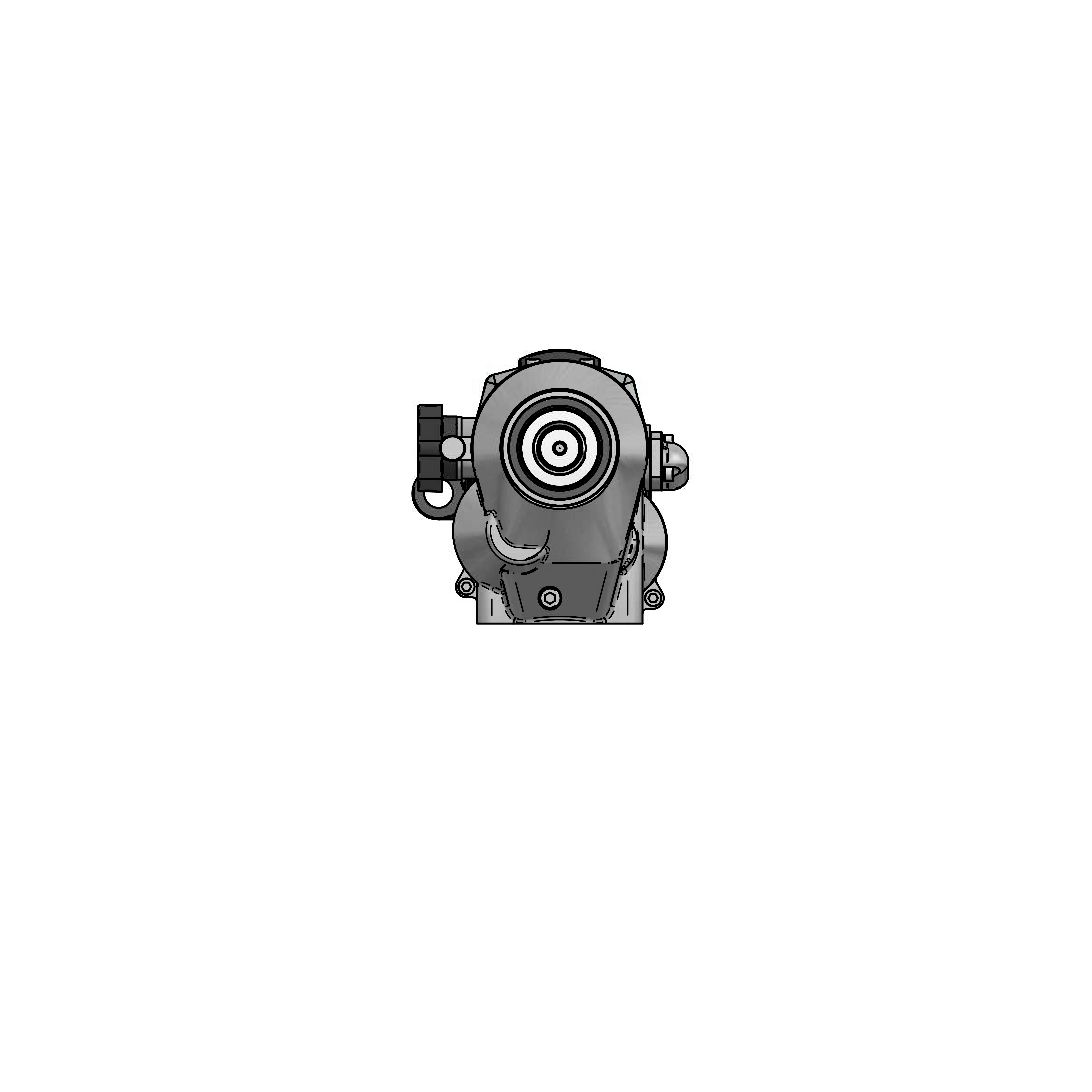

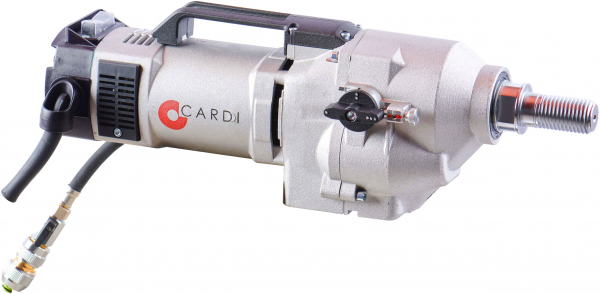

T6 375-EL

Core drill motor - wet - 3 gears

On stand (rig)
Wet
TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Heavy-duty, impressively powerful, for large drillings
32-400 / 1"1/4-16" [mm]/[in]
4600/3420 W

Contact us
SKU: 9400 Categories: ,

Main features

Drilling mode Wet
Technology TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter 32-400 / 1"1/4-16" [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Available as
CARDI 400 Core drill on stand (rig) - wet - 3 gears

CARDI 400

Core drill on stand (rig) - wet - 3 gears

Discover now

Applications

Drillings for HVAC installation
Drillings for chimneys installation
Drillings for guardrails and fences installation
Drillings of marble and stone slabs
Sampling of cores
Manhole / round openings
Consolidation and securing of buildings – deep drillings
Stitch drilling
Opening of doors, windows, skylights

Users

Landscaper / gardener
Company specialized in materials’ testing
Construction company / general contractor
Professional drilling and cutting company
Demolition expert

Included items

Core drill motor: T6 375-EL-4

Technical features

T6 375-EL-4 - Technical Image
Operational mode On stand (rig)
Drilling mode Wet
Technology TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter 32-400 / 1"1/4-16" [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Gears 3
Rated no-load rpm 350/800/1470 RPM
Rated load rpm 230/520/960 RPM
Core bit connection 1"1/4 UNC
PRCD / GFI Included

Noise emission value - A-weighted sound pressure level (LpA) 91 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 104 [dB (A)]




Weight 13.35/29.4 [kg]/[lb]
Dimensions - L x W x H 525x169x167 - 19"3/4x6"1/4x6"1/4 [mm]/[in]
Supplied in Carton box
