DV SD-1504

DV SD-1504

Core drill on rail - Wet

Wet
TALPA + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Ultra heavy-duty, impressively powerful, for small-mid drillings
52-152 / 2"-6" [mm]/[in]
4600/3420 W

Contact us
SKU: 20300 Categories: ,

Main features

Drilling mode Wet
Technology TALPA + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter 52-152 / 2"-6" [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Main track length 1500/59" [mm]/[in]
Usable stitch drilling length 500/19"3/4 [mm]/[in]

Applications

Drillings for HVAC installation
Drillings for networks (e.g., internet, security systems, fire protection systems) installation
Drillings for anchors installation
Drillings for chimneys installation
Drillings for guardrails and fences installation
Drillings of marble and stone slabs
Sampling of cores
Manhole / round openings
Consolidation and securing of buildings – deep drillings
Drillings of marble and stones in quarries
Stitch drilling
Opening of doors, windows, skylights

Users

Plumber
Electrician
Installer (e.g., HVAC, networks, anchors, chimneys, guardrails and fences)
Stonemason
Landscaper / gardener
Company specialized in materials’ testing
Construction company / general contractor
Professional drilling and cutting company
Demolition expert
Company specialized in quarrying

Technical features

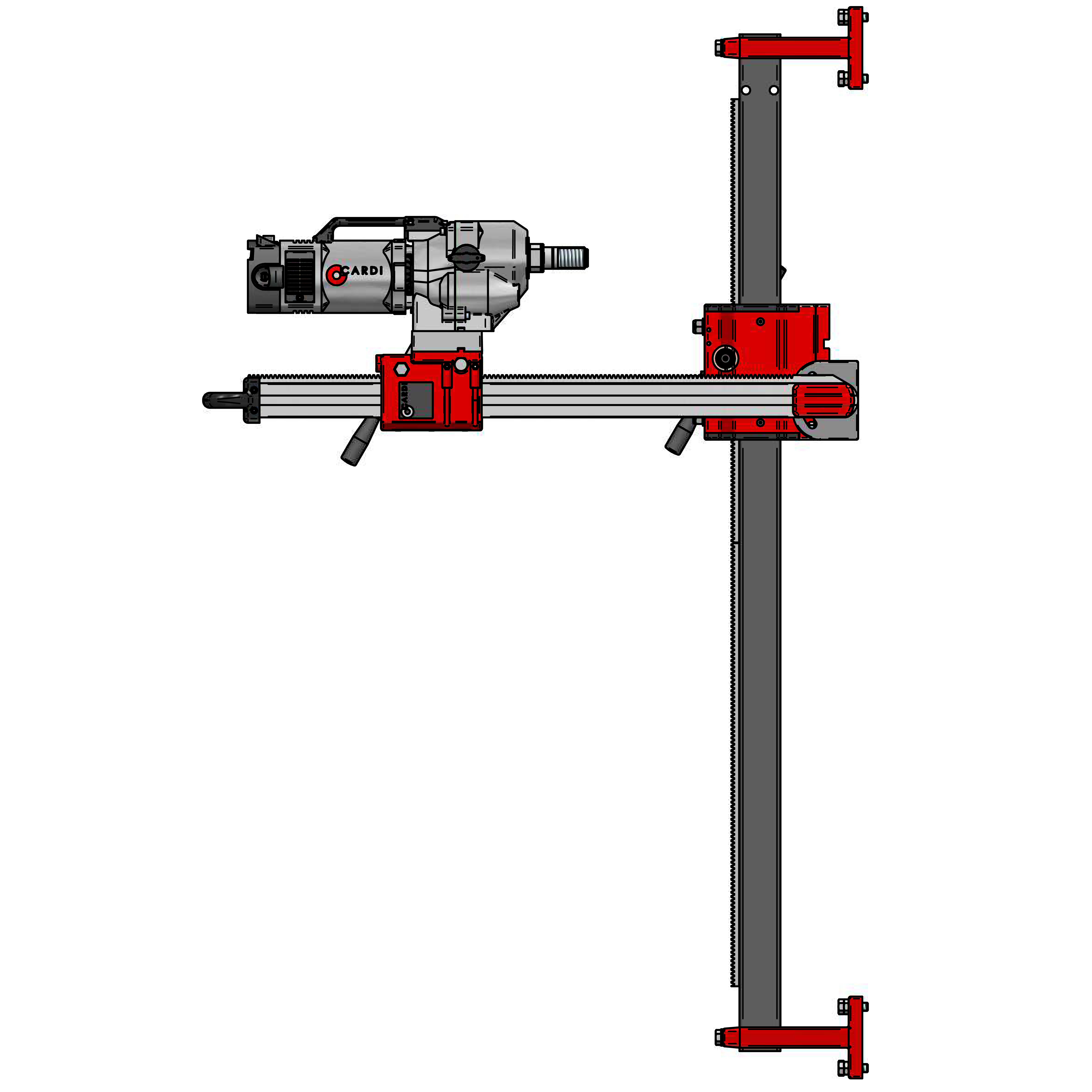

DV SD-1504 - Technical Image
Operational mode On rail
Drilling mode Wet
Technology TALPA + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter 52-152 / 2"-6" [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Gears 2
Rated no-load rpm 490/1170 RPM
Rated load rpm 320/760 RPM
Core bit connection 1"1/4 UNC
PRCD / GFI Included
Noise emission value - A-weighted sound pressure level (LpA) 91 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 104 [dB (A)]
Main track length 1500/59" [mm]/[in]
Usable stitch drilling length 500/19"3/4 [mm]/[in]
Weight 39.2/86.4 [kg]/[lb]
Dimensions - L x W x H 1580x415x1150 - 62"x16"x40" [mm]/[in]
Supplied in Carton box
