506259

506259

Stand (rig)

Ultra heavy-duty, for very large drillings
700 / 27"1/2 [mm]/[in]

Contact us
SKU: 16700 Categories: ,

Main features

Base compact and light aluminum base
Column steel 73x73 mm/steel 2"7/8 x 2"7/8 [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 2 spokes feeding handle
Max carriage run 750 / 29"1/2 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting cam-lock quick connect
Max drilling diameter 700 / 27"1/2 [mm]/[in]
Available as
X2R Stand (rig)

X2R

Stand (rig)

Discover now

Applications

Drillings for HVAC installation
Drillings for networks (e.g., internet, security systems, fire protection systems) installation
Drillings for anchors installation
Drillings for chimneys installation
Drillings for guardrails and fences installation
Drillings of marble and stone slabs
Sampling of cores
Manhole / round openings
Consolidation and securing of buildings – deep drillings
Drillings of marble and stones in quarries
Stitch drilling
Opening of doors, windows, skylights

Users

Plumber
Electrician
Installer (e.g., HVAC, networks, anchors, chimneys, guardrails and fences)
Stonemason
Landscaper / gardener
Company specialized in materials’ testing
Construction company / general contractor
Professional drilling and cutting company
Demolition expert
Company specialized in quarrying

Technical features

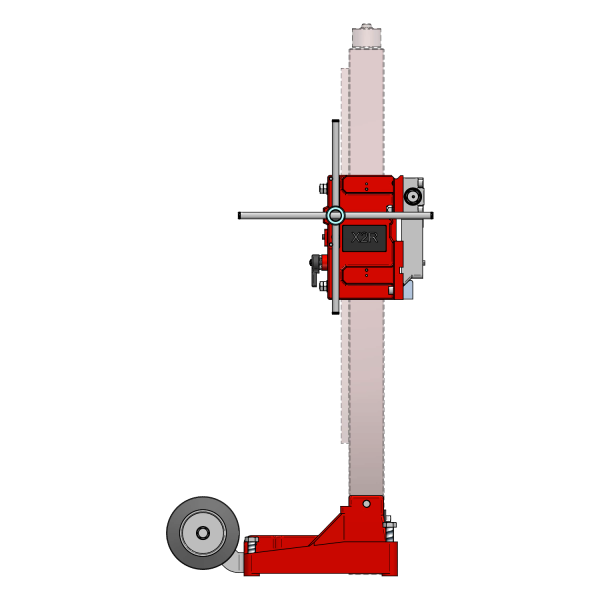

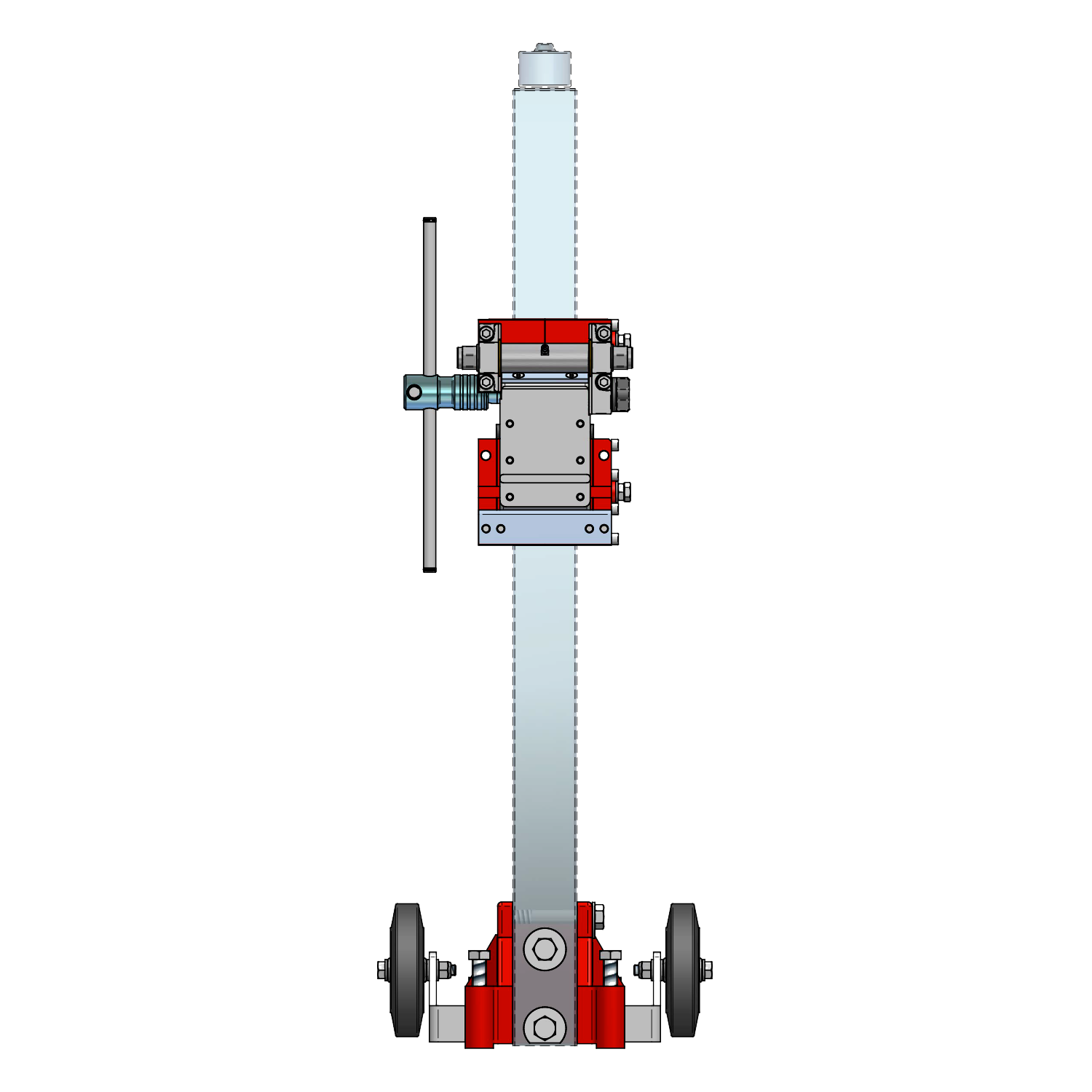

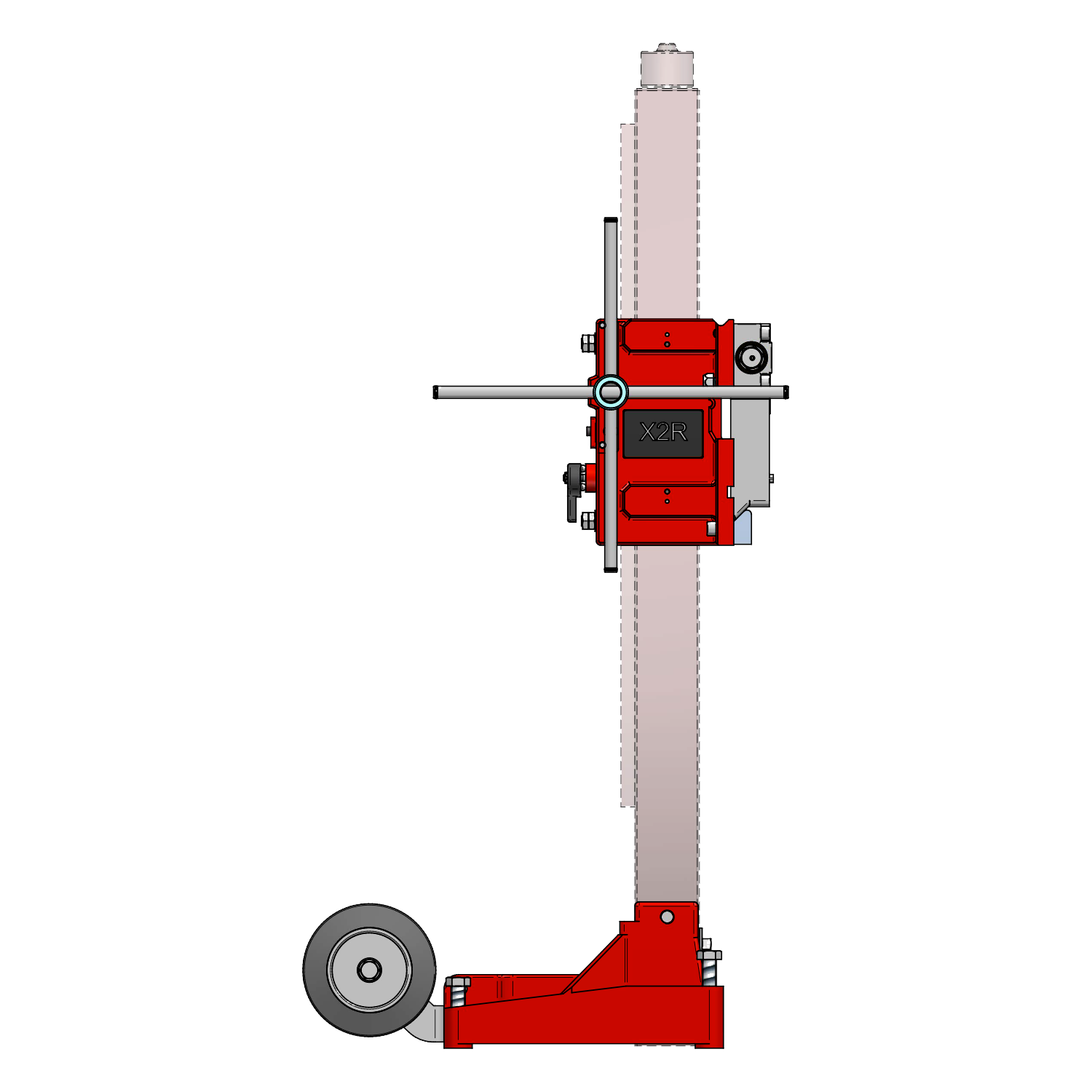

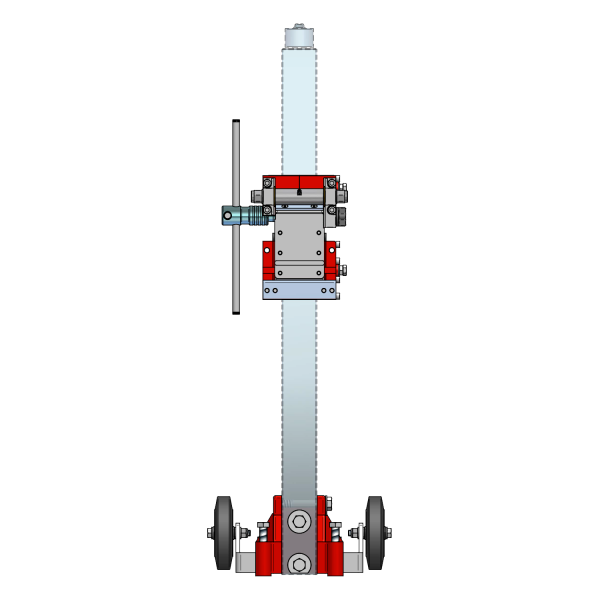

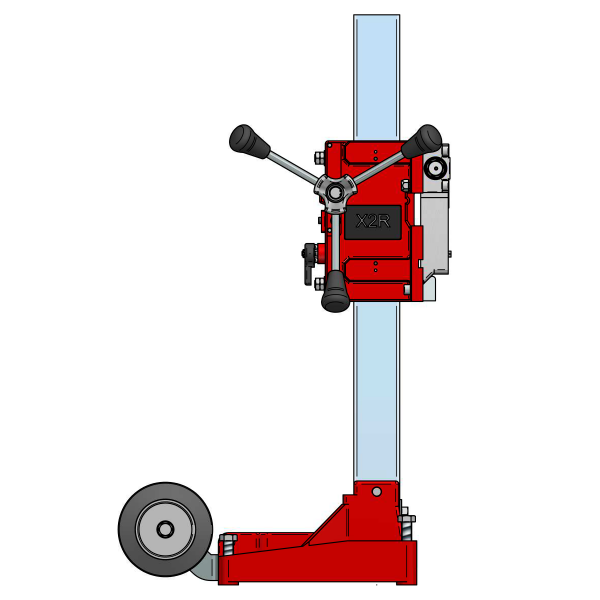

506259 - Technical Image
Technology X2R technology
Base compact and light aluminum base
Column steel 73x73 mm/steel 2"7/8 x 2"7/8 [mm]/[in]
Carriage steel rollers and bearings
Feeding handle 2 spokes feeding handle
Max carriage run 750 / 29"1/2 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting cam-lock quick connect
Max drilling diameter 700 / 27"1/2 [mm]/[in]
Supplied in Carton box
