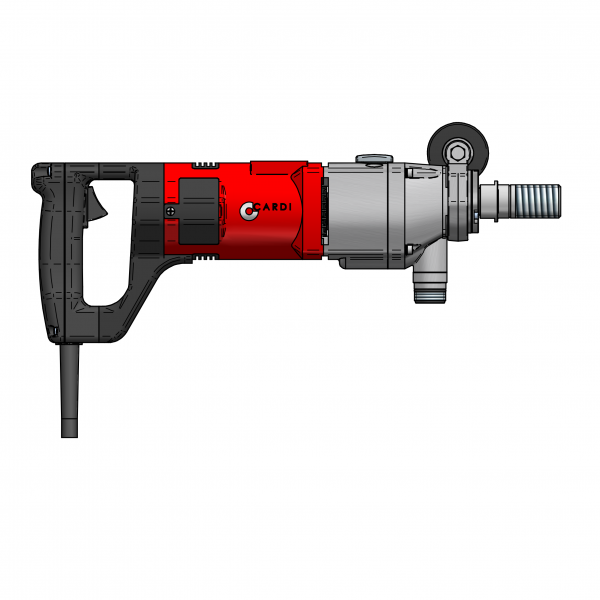

P2000 MA-15

Hand-held core drill - Dry

Hand-held or on stand (rig)
Dry
TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Compact-low weight, powerful, for small-mid drillings
32-182 / 1"1/4-7"1/4 [mm]/[in]
2400 / 2000 W

Contact us
SKU: 59100 Categories: ,

Main features

Drilling mode Dry
Technology TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter 32-182 / 1"1/4-7"1/4 [mm]/[in]
Input power (max / rated) 2400 / 2000 W
Input current (max / rated) 11 / 9 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks

Applications

Drillings for HVAC installation
Drillings for networks (e.g., internet, security systems, fire protection systems) installation
Drillings for chimneys installation
Drillings of marble and stone slabs
Sampling of cores
Manhole / round openings

Users

Plumber
Electrician
Installer (e.g., HVAC, networks, anchors, chimneys, guardrails and fences)
Stonemason
Landscaper / gardener
Construction company / general contractor

Included items

Hand-held core drill: P2000 MA-15
Accessory: 501163 – Spanner 19 mm
Case: 503090 – Plastic case

Technical features

P2000 MA-15 - Technical Image
Operational mode Hand-held or on stand (rig)
Drilling mode Dry
Technology TALPA technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter 32-182 / 1"1/4-7"1/4 [mm]/[in]
Input power (max / rated) 2400 / 2000 W
Input current (max / rated) 11 / 9 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Gears 1
Rated no-load rpm 900 RPM
Rated load rpm 600 RPM
Load micro-percussions 10800 [min-1]
Core bit connection 1"1/4 UNC
PRCD / GFI Not Included

Noise emission value - A-weighted sound pressure level (LpA) 90 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 101 [dB (A)]
Vibrations value - drilling into concrete (ah,DD) 6.2 [m/s²]
Vibrations value - impact drilling into concrete (ah,ID) 13 [m/s²]





Weight 6 / 13.2 [kg]/[lb]
Dimensions - L x W x H 502x102x175 - 20"x4"x6"3/4 [mm]/[in]
Supplied in Plastic case
