DV CD35-1500
Chainsaw on rail - wet - bar and chain included
Wet
CD + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Ultra heavy-duty, impressively powerful, for deep, squared cuttings
350 / 14" [mm]/[in]
4600/3420 W
Main features
Sawing mode Wet
Technology CD + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Cutting depth 350 / 14" [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Main track length 1500/59" [mm]/[in]
Usable cutting length 1200 / 47"1/4 [mm]/[in]
Applications
Opening of doors, windows, skylights
Cutting of marble and stone slabs
Cutting of pavement slabs
Cutting of grooves and joints
Users
Construction company / general contractor
Professional drilling and cutting company
Demolition expert
Included items

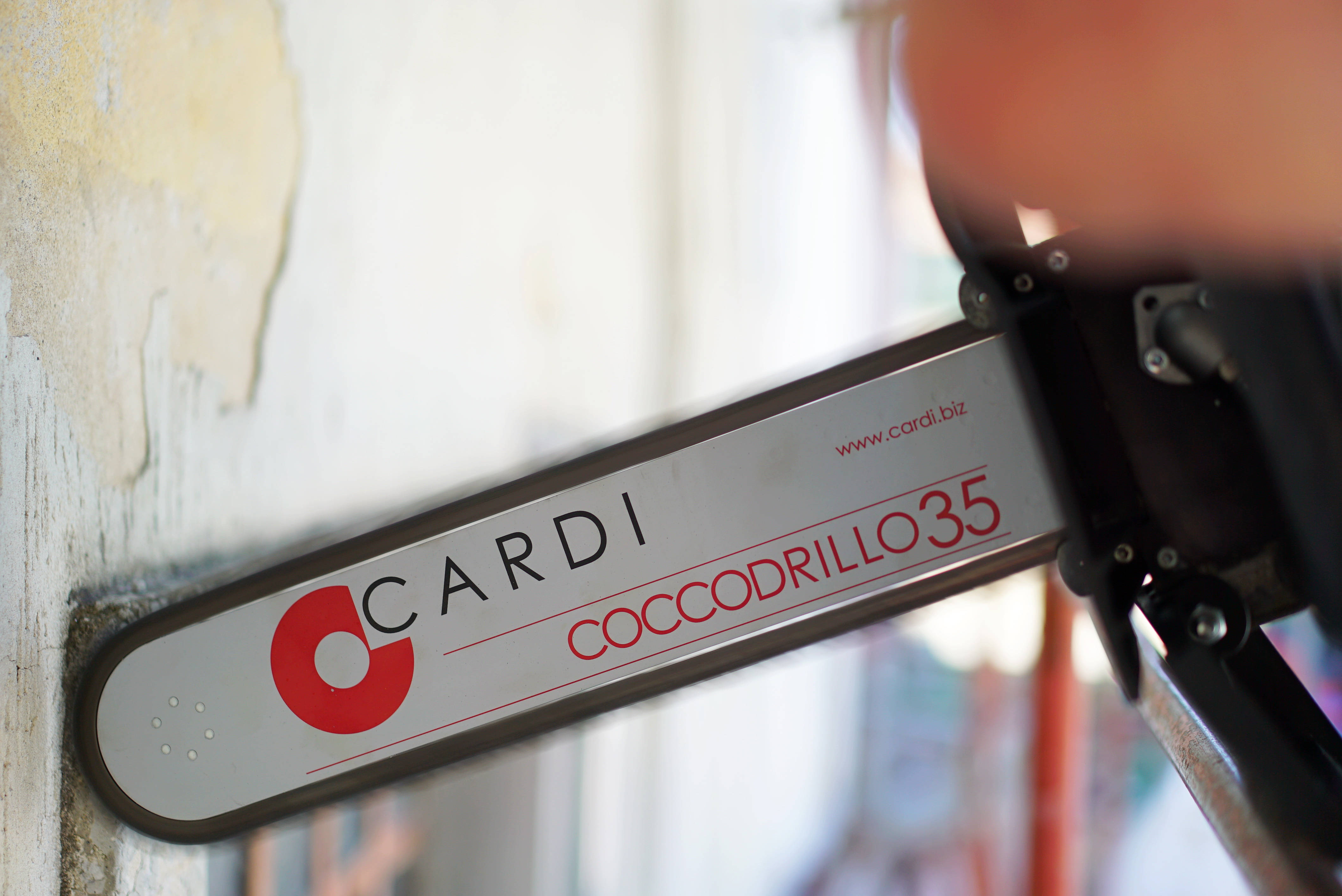

Chainsaw: CD35
Rail: DV TR CD35-1500
Bar: BAR35 – Guide bar for diamond chain – 35 cm – 14″
Chain: CHAIN35 – Diamond chain – 35 cm – 14″

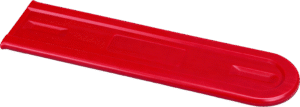

Accessory: 505756 – Chain cover
Accessory: 505424 – Pipe wrench 13 mm + flat blade screwdriver
Accessory: 501163 – Spanner 19 mm
Accessory: 505284 – Allen key 6 mm
Technical features
Operational mode Hand-held or on rail
Sawing mode Wet
Technology CD + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Cutting depth 350 / 14" [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Rated no-load rpm 9390 RPM
Rated load rpm 6150 RPM
Max guide bar length 400 / 16" [mm]/[in]
Chain type Diamond chain
PRCD / GFI Included
Noise emission value - A-weighted sound pressure level (LpA) 96.3 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 107.3 [dB (A)]
Vibrations value (ah) 4.32 (hand-held) [m/s²]
Main track length 1500/59" [mm]/[in]
Usable cutting length 1200 / 47"1/4 [mm]/[in]
Weight 46.2/101.9 [kg]/[lb]
Dimensions - L x W x H 1580x445x1080 - 62"x17"x40" [mm]/[in]
Supplied in Carton box
