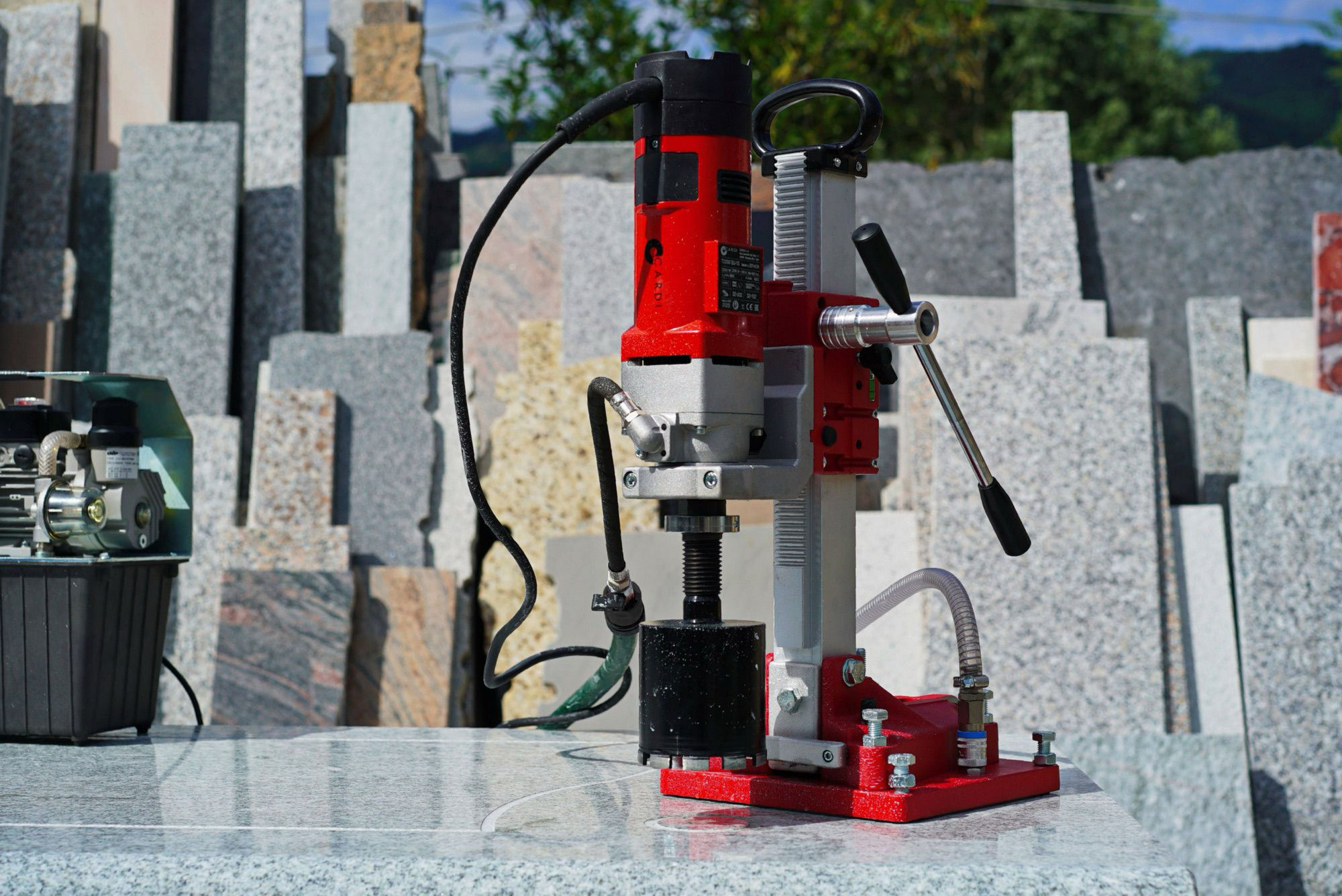

L 160-COMPACT-1
Stand (rig) - compact - with 60 mm collar
Optimal size-weight balance, for mid drillings
202 / 8" [mm]/[in]
Main features
Base compact and light aluminum base
Column extruded aluminum 50x50 mm/extruded aluminum 2x2" ca. [mm]/[in]
Carriage self lubricating sliding pads
Feeding handle multi-function feeding handle
Max carriage run 235 / 9"1/4 [mm]/[in]
Fixing system with anchor
Core drill mounting 60 mm collar for hand-held core drills
Max drilling diameter 202 / 8" [mm]/[in]
Applications
- Drillings for HVAC installation
- Drillings for networks
- Drillings for anchors installation
- Drilling for chimneys installation
- Drilling for guardrails and fences installation
- Drillings of marble and stone slab
- Sampling of cores
- Manhole / round openings
- Consolidation and securing of buildings - deep drillings
- Stitch drilling
- Opening of doors / windows / skylights
- Drillings of marble and stones in quarries
Users
- Plumber
- Electrician
- Installer
- Stonemason
- Landscaper / gardener
- Company specialized in material's testing
- Construction company / general contractor
- Professional drilling and cutting company
- Demolition expert
- Company specialized in quarrying
Included items
Stand (rig): L 160-COMPACT-1
Accessory: 501163 – Spanner 19 mm
Accessory: 505284 – Allen key 6 mm
Technical features
Technology LEONARDO technology
Base compact and light aluminum base
Column extruded aluminum 50x50 mm/extruded aluminum 2x2" ca. [mm]/[in]
Carriage self lubricating sliding pads
Feeding handle multi-function feeding handle
Max carriage run 235 / 9"1/4 [mm]/[in]
Fixing system with anchor
Core drill mounting 60 mm collar for hand-held core drills
Max drilling diameter 202 / 8" [mm]/[in]
Weight 9.62/21.2 [kg]/[lb]
Dimensions - L x W x H 405x240x565 - 16"x9"1/4x21"1/4 [mm]/[in]
Supplied in Carton box
