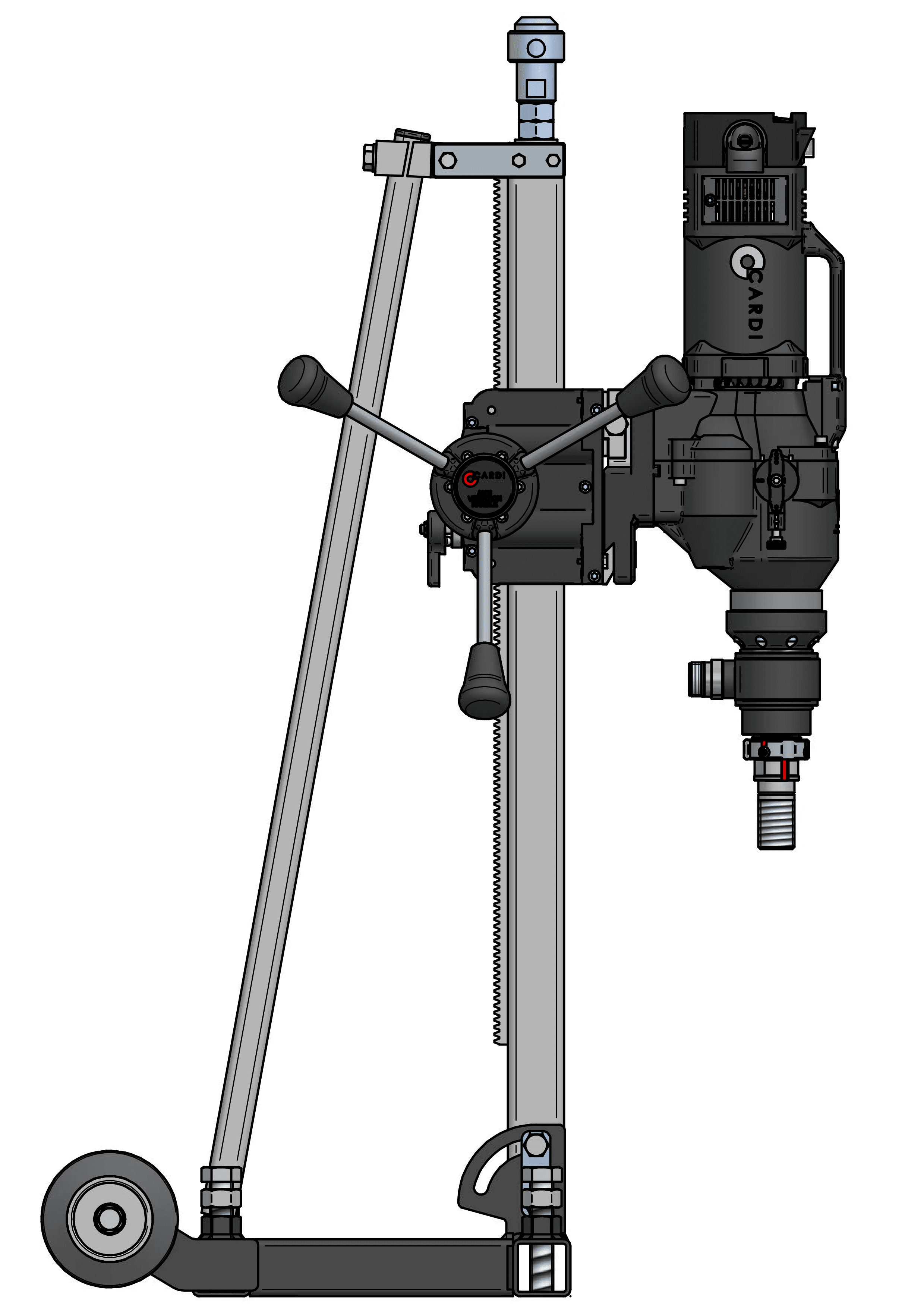

DPT HS 400 SE-38
Core drill on stand (rig) - advanced hybrid - wet / dry - 3 gears - with DPT micro-percussion - new!
On stand (rig)
Advanced hybrid - wet / dry
DPT micro-percussion technology - electric air-cooled 1P motor + CARDI adv. electronics
Advanced performance: clean and 40% faster drilling, heavy-duty, impressively powerful, for large drillings
25-400 / 1"-16" [mm]/[in]
4600 / 3420 W
Main features
Drilling mode Advanced hybrid - wet / dry
Technology DPT micro-percussion technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 25-400 / 1"-16" [mm]/[in]
Drilling diameter - reinforced concrete 25-400 / 1"-16" [mm]/[in]
Input power (max / rated) 4600 / 3420 W
Input current (max / rated) 22 / 16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Base professional high resistance steel base
Column steel 50x50 mm/steel 2"x2" ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle DPT anti-vibration technology - vibrations reduced by 50%
Max carriage run 650 / 25"1/4 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting Dove-tail quick connection
Users
- Company specialized in material's testing
- Construction company / general contractor
- Professional drilling and cutting company
- Demolition expert
Applications
- Drillings for HVAC installation
- Drilling for chimneys installation
- Drilling for guardrails and fences installation
- Drillings of marble and stone slab
- Sampling of cores
- Manhole / round openings
- Consolidation and securing of buildings - deep drillings
- Stitch drilling
Included items
Core drill motor: DPT 3500 SE-38
Stand (rig): DPT C 520
Accessory: 505355 – CARDIFACILE – Quick core-bit unscrewing device for stationary core drills
Accessory: 501852 – Spacer – 45mm
Accessory: 503628 – Anchoring fixing kit – M12
Accessory: 501163 – Spanner 19 mm
Accessory: 502110 – Spanner 30 mm
Accessory: 505284 – Allen key 6 mm
Technical features
Operational mode On stand (rig)
Drilling mode Advanced hybrid - wet / dry
Technology DPT micro-percussion technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 25-400 / 1"-16" [mm]/[in]
Drilling diameter - reinforced concrete 25-400 / 1"-16" [mm]/[in]
Input power (max / rated) 4600 / 3420 W
Input current (max / rated) 22 / 16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Gears 3
Rated no-load rpm 350 / 800/ 1470 RPM
Rated load rpm 230 / 520 / 960 RPM
Core bit connection 1"1/4 UNC
PRCD / GFI Included
Noise emission value - A-weighted sound pressure level (LpA) 102.6 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 113.6 [dB (A)]
Base professional high resistance steel base
Column steel 50x50 mm/steel 2"x2" ca. [mm]/[in]
Carriage steel rollers and bearings
Feeding handle DPT anti-vibration technology - vibrations reduced by 50%
Max carriage run 650 / 25"1/4 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting Dove-tail quick connection
Weight 41.6 / 91.7 [kg]/[lb]
Dimensions - L x W x H 700x410x1120 - 27"1/2x16"X40" [mm]/[in]
Supplied in Carton box
