New

DPT HS 250 PE-36

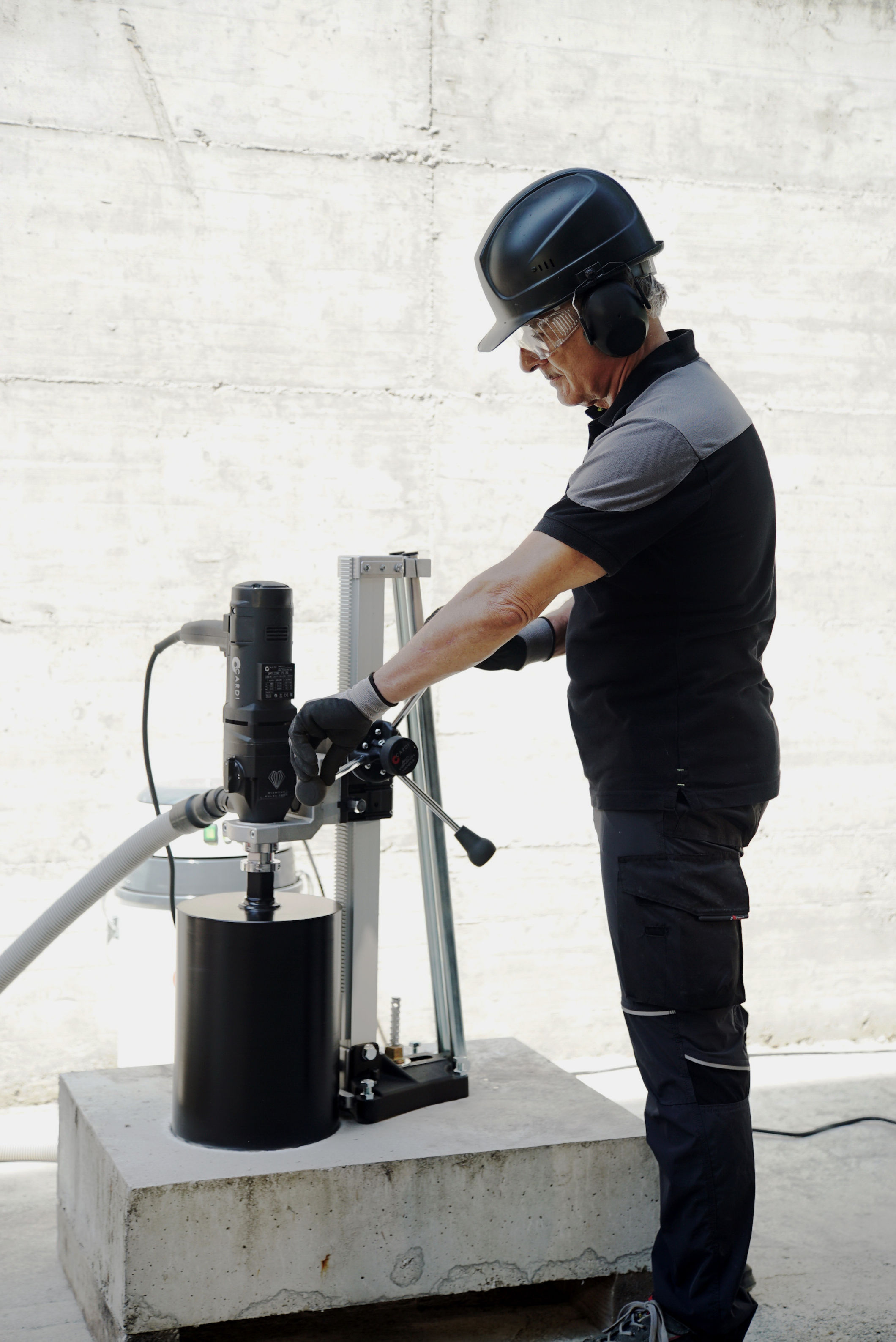

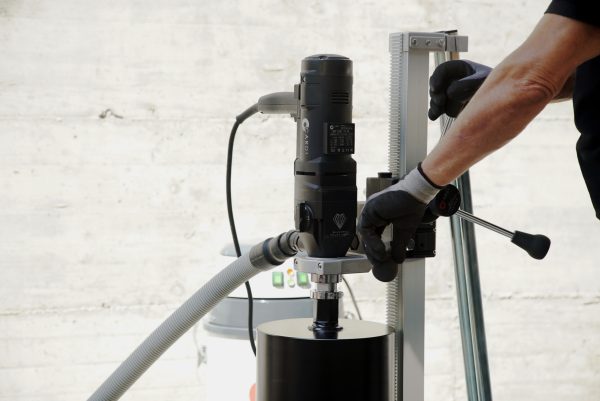

Hand-held core drill on stand (rig) - advanced hybrid - wet / dry - 3 gears - with DPT micro-percussion - new!

Hand-held or on stand (rig)
Advanced hybrid - wet / dry
DPT micro-percussion technology - electric air-cooled 1P motor + CARDI adv. electronics
Advanced performance: clean and 40% faster drilling, optimal size-weight balance, powerful, for mid drillings
20-250 / 3/4"-10" [mm]/[in]
2500 / 2200 W

Contact us
SKU: 60800 Category:

Main features

Drilling mode Advanced hybrid - wet / dry
Technology DPT micro-percussion technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 20-250 / 3/4"-10" [mm]/[in]
Input power (max / rated) 2500 / 2200 W
Input current (max / rated) 11.5 / 10 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Base compact and light aluminum base
Column extruded aluminum 50x50 mm/extruded aluminum 2"x2" ca. [mm]/[in]
Carriage self lubricating sliding pads
Feeding handle DPT anti-vibration technology - vibrations reduced by 50%
Max carriage run 577 / 22"3/4 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting 60 mm collar for hand-held core drills + Rapid-lock quick connection

Applications

  • Drillings for HVAC installation
  • Drillings for networks
  • Drillings for anchors installation
  • Drilling for chimneys installation
  • Drilling for guardrails and fences installation
  • Drillings of marble and stone slab
  • Sampling of cores
  • Manhole / round openings
  • Stitch drilling

Users

  • Plumber
  • Electrician
  • Installer
  • Stonemason
  • Landscaper / gardener
  • Company specialized in material's testing
  • Construction company / general contractor
  • Professional drilling and cutting company
  • Demolition expert

Included items

Hand-held core drill: DPT 2200 PE-36
Stand (rig): DPT L 200-2
Accessory: 506102 – CARDIFACILE – Quick core-bit unscrewing device for hand-held core drills
Accessory: 506845 – Spacer – 52mm – with quick connection system
Accessory: 503628 – Anchoring fixing kit – M12
Accessory: 501163 – Spanner 19 mm
Accessory: 502970 – Spanner 32 mm
Accessory: 505284 – Allen key 6 mm
Case: 506846 – Plastic case

Technical features

DPT HS 250 PE-36-4X - Technical Image
Operational mode Hand-held or on stand (rig)
Drilling mode Advanced hybrid - wet / dry
Technology DPT micro-percussion technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry 20-250 / 3/4"-10" [mm]/[in]
Input power (max / rated) 2500 / 2200 W
Input current (max / rated) 11.5 / 10 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Gears 3
Rated no-load rpm 610 / 1300 / 1910 RPM
Rated load rpm 430 / 920 / 1360 RPM
Core bit connection 1"1/4 UNC
PRCD / GFI Included

Noise emission value - A-weighted sound pressure level (LpA) 99 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 110 [dB (A)]
Vibrations value - drilling into concrete (ah,DD) 10.36 (hand-held) [m/s²]
Vibrations value - impact drilling into concrete (ah,ID) 17.48 (hand-held) [m/s²]


Base compact and light aluminum base
Column extruded aluminum 50x50 mm/extruded aluminum 2"x2" ca. [mm]/[in]
Carriage self lubricating sliding pads
Feeding handle DPT anti-vibration technology - vibrations reduced by 50%
Max carriage run 577 / 22"3/4 [mm]/[in]
Rear bars steel - 2 bars
Tilting angle from 0° to 45°
Fixing system with anchor
Core drill mounting 60 mm collar for hand-held core drills + Rapid-lock quick connection



Weight 21.3 / 47 [kg]/[lb]
Dimensions - L x W x H 410x450x860 - 16"x17"3/4x32" [mm]/[in]
Supplied in Carton box
